XN400 Inflatable Light Tower with High Bright Xenon Lamp 400W
1. Inflatable Light Tower description:
Main features
We have several lines of inflatable light towers for portable
emergency lighting and illumination for highway construction,
traffic control, EMS scenes, and for attractive and informative
lighting at public and private events.Portable, powerful , can
easily be carried and set up by one person in minutes.
Grid voltage DC12V/24V
Warm-up time: < 3 minutes
Hot restrike: 8~10m (metal halide),
<10 seconds
Market adaptability: suitable both for North America & Europe
Lamps: 2 x 100w HID Xenon lamps
Efficiency: >90 lm/WMaximum lumen: 20000 lm
Colour temperature: neutral white-4200°K or cool white-6500°K
2. Technical parameters:
| | | XN200w 12V/24V DC | XN400w 12V/24V DC |
| Lighted area > 1lux / 0.1fc | m²/ sq.ft. | 510 / 4,869 | 1,075 / 11,573 |
| Lighted area > 10 lux / 1fc | m²/ sq.ft. | 210 / 2,314 | 440 / 4,629 |
| Light under the ballon - 4m | Lux / Fc | 370 / 33 | 750 / 70 |
| Maximum lumen | lm | 20,000 | 40,000 |
| Color temperature | °K | 3000k, 4200k, 5500k/6000k |
| | 400w 120-230 V AC | 575w 120-230 V AC |
| Lighted area > 1lux / 0.1fc | m²/ sq.ft. | 430 / 1,473 | 610 / 1,525 |
| Lighted area > 10 lux / 1fc | m²/ sq.ft. | 1,075 / 3,683 | 1,525 / 754 |
| Maximum lumen | lm | 36,000 | 49,000 |
| Color temperature | °K | 4200 | 6500 |
3. Product Dimension:
2 x 100w HID Xenon lamps
4M height column
4. Installation:
mounted on the tripod
5. General Feature:
The system consists of inbuilt genet of 1.2KVA, two blowers, 400W
metal halide lamp. First the user has to switch on the genset and
then blowers to inflate the cloth at a height of 4.5 meters from
the ground level. Further we switch on the lamp which illuminates
an area upto 10,000 Square meters.
AdvantagesColumus MH400w,
120/230V AC- 120V/208V/240V/277V AC (alternative current)
- lamps - metal halide
- works on grid power 120V/60Hz in North America or 230V/50Hz rest
of the world
- Quick and easy set-up
Columus HMI575,
120/230V AC- 120 / 230 V AC (alternative current)
- lamps - HMI
- works on grid power 120V/60Hz in North America or 230V/50Hz rest
of the world
- Quick and easy set-up
6. Package:
HIcase Packing
7. Shiping:
Normally, the goods will be shipping by Sea, by air or by DHL
according to customer's request
1) Strong and professional package Hicase for safety
transportation.
2) Clear label Item show what is product in the cartons, including
watts, CCT, quantity,etc.
8. Certification:
CE, ISO9001,ROHS
9. FAQ:
What are your main products?
Our main products are Events Balloon Lighting, Inflatable Light
Tower ,rescue lighting , Construction and Worksite Lighting
,Emergency and Safety Lighting and so on, OEM are welcome.
What is the location of your company?
Our company is located in Wuxi city, Jiangsu province in China,
near the biggest sea ports of China Shanghai port, about 3 hours by
car. If you would like to have a visit, welcome.
What is your MOQ?
Our MOQ is usually 1PCS, first trial order can be to be discussed.
What is the shipping port?
We ship the goods via DHL, TNT Fedex.
What is your delivery time?
The time of delivery is about 10~20days after we receive the
deposit.
What are your payment terms?
We accept 30% T/T in advance, or paypal, Western Union, to be
discussed.
What is your sample time?
Usually we will take5-7 days to make the samples.
TAG:
Events Space Lighting
Events decoration balloon lighting
Events outdoor illuminate lighting
Lighting cone
Lighting decoration

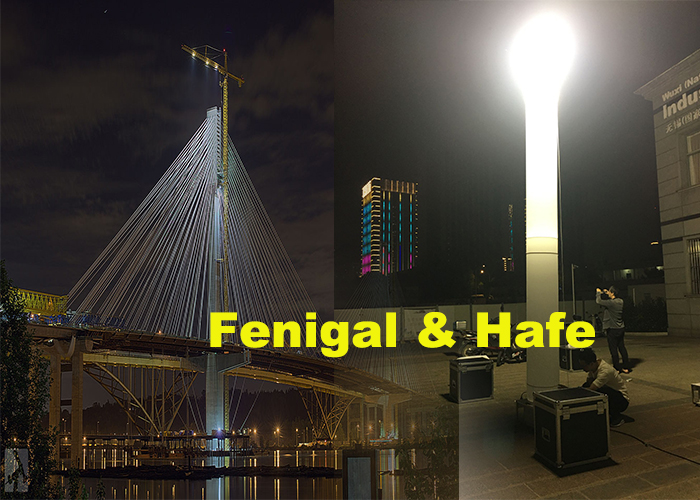

10. Lighting Effect & Application:
