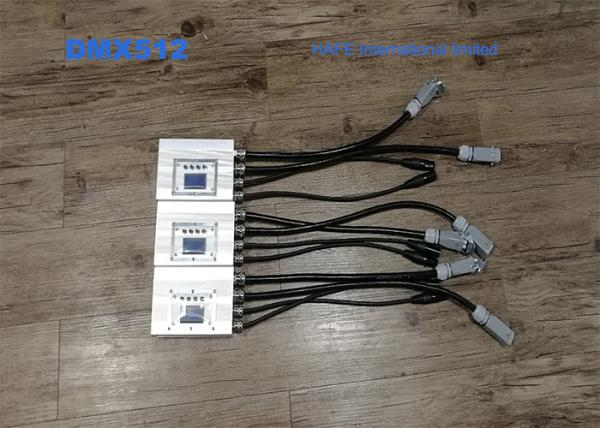

AC120-240V DMX512 BOX For RGBW LED Stage Lighting Use Light Fitting
Accessories
The DMX512 controller is capable of outputting standard DMX512
control signals. Ability to cascade multiple DMX luminaires to
match LED DMX drive groups Into a complete DMX control system. In
large LED outdoor decoration projects The control system consisting
of DMX512 controller and DMX driver is widely used.
General features
There are total 11 sub-menu function "Set Address", "Sound",
"Auto", "Strobe", "Fade", "Color", "Channel", "Menu", "Slave",
"Temp", "Set Lcd", as shown below. 9 of them has actual use.
8channel selection makes lighting output in 8-ways (namely
occupying 8 address points in one DMX universe).
channel-1: master dimming
channel--2: strobe speed
channel-3: 5 types of pre-set light effects (working with channel-4
only)
channel-4: shift speed (working with channel-3 only)
channel-5: Red value setting (1~255)
channel-6: Green value setting (1~255)
channel-7: Blue value setting (1~255)
channel-8: White value setting (1~255)
4channel selection makes lighting output in 4-ways (namely
occupying 4 address points in one DMX universe). It is a very easy
function.
channel-1: Red value setting (1~255)
channel-2: Green value setting (1~255)
channel-3: Blue value setting (1~255)
channel-4: White value setting (1~255)
Kind remind: you may need to consult to a qualifiedDXM512 lighting
technician or good player to have a guidance lead with failure to
understand above channel information.Note: channel-3 and channel-4
has priority over othe
Basic Functions
LED technology. Highly power efficient and energy saving Versatily
built and customizable. Increadibly long working lifetime
(>50,000 hrs).
All-in-1. RGB+W LED chips make it possible to light up or decor the
places, rendering adaptable themes wanted by same unit of
product.Smart control light show. Thanks to the control box and DMX
technology, the unit could render up to 1,000 mixed colors and many
possible lighting effects.
DMX console adaptability. The product is 100% adaptable to all
types of DMX console gloablly. With pre-set color modes; autonomous
mode ot manual setting mode.Flicker free. Friendly to broadcasting
occasions.
Specifications
| Model | DMX512 |
| Input voltage | 120V-240V |
| Max load current | 4A |
| Max output power | 800W |
| Output Scale level | 4096 levels |
| Input signal | DMX512/1990 |
| Output DMX Channel | 8Channels |
| Working temperature | -30°C-65°C |
| Dimension | L260×W110×H40(mm) |
| Package Size | L270×W130×H45(mm) |
| Weight (G.W) | 920g |
| |
