    320W 36V Electrical Lighting Accessories , Meanwell PWM Dimming Led Power Driver

    Ask Lasest Price
    Brand Name : Meanwell
    Model Number : HLG-320H-36A
    Certification : IP67, PFC, CUL, CE, CB, PSE,TUV
    Price : Negotiable
    Supply Ability : 3000untis/ year
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    320W 36V Electrical Lighting Accessories , Meanwell PWM Dimming Led Power Driver

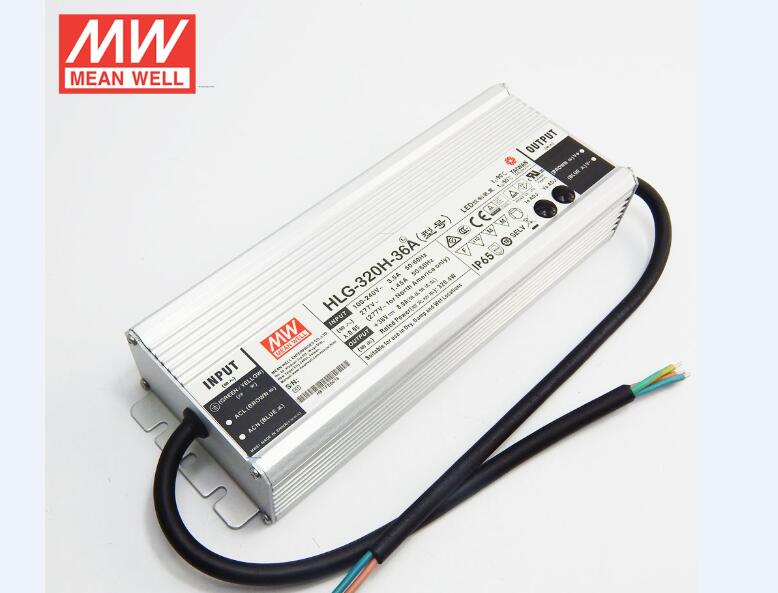

    320W 36V Meanwell (MW) PWM dimming led driver HLG-320H-36A LED Power Supply


    Features:
    * Universal AC input / Full range (up to 305VAC)
    * Built-in active PFC function
    * Protections: Short circuit / Overload / Over voltage / Over temperature
    * Cooling by free air convection
    * OCP point adjustable through output cable .or internal potential meter
    * IP67 / IP65 design for indoor .or outdoor installations
    * Optional dimming function (1~10Vdc .or PWM signal .or resister) Suitable for LED lighting and moving sign applications Compliance to worldwide safety regulations for lighting
    * Suitable for dry / damp / wet location and outdoor application
    * 5 years warranty
    Specifications:
    MODELHLG-320H-12HLG-320H-15HLG-320H-20HLG-320H-24

    OUTPUT

    DC VOLTAGE12V15V20V24V
    C&C REGION6 ~12V7.5 ~ 15V10 ~ 20V12 ~ 24V
    RATED CURRENT22A19A15A13.34A
    RATED POWER264W285W300W320.2W
    RIPPLE & NOISE150mVp-p150mVp-p150mVp-p150mVp-p
    VOLTAGE ADJ.10.8~13.5V13.5~ 17V17 ~ 22V22 ~ 27V
    CURRENT ADJ.RANGECan be adjusted by internal potential meter .or through output cable
    11 ~ 22A9.5 ~ 19A7.5 ~ 15A6.67~13.34A
    VOLTAGE TOLERANCE2.5%2.0%1.0%1.0%
    LINE REGULATION0.5%0.5%0.5%0.5%
    LOAD REGULATION2.0%1.5%1.0%0.5%
    SETUP RISE TIME2500ms, 80ms at full load 230VAC /115VAC
    HOLD UP TIME15ms at full load 230VAC / 115VAC

    INPUT

    VOLTAGE RANGE90 ~ 305VAC 127 ~ 431VDC
    FREQUENCY47 ~ 63Hz
    POWER FACTORPF 0.95/230VAC PF 0.98/115VAC at full load and rated output voltage PF 0.9 at 50 ~ 100% load
    EFFICIENCY92%92%93%94%
    AC CURRENT4A / 115VAC 2A / 230VAC 1.8A / 277VAC
    INRUSH CURRENTCOLD START 75A/230VAC
    LEAKAGE CURRENT<0.75mA / 277VAC m

    OTHERS

    MTBFKhrs min. MIL-HDBK-217F
    DIMENSION252*90*42mm (L*W*H)(HLG-320H-Blank/A/B) 256*90*42mm (L*W*H)(HLG-320H-C)
    PACKINGKg
    MODELHLG-320H-30HLG-320H-36HLG-320H-42HLG-320H-48HLG-320H-54

    OUTPUT

    DC VOLTAGE30V36V42V48V54V
    C&C REGION15 ~ 30V18 ~ 36V21 ~ 42V24 ~ 48V27 ~ 54V
    RATED CURRENT10.7A8.9A7.65A6.7A5.95A
    RATED POWER321W320.4W321.3W321.6W321.3W
    RIPPLE & NOISE200mVp-p200mVp-p200mVp-p200mVp-p200mVp-p
    VOLTAGE ADJ.27 ~ 33V33 ~ 40V38 ~ 46V43 ~ 53V49 ~ 58V
    CURRENT ADJ.RANGECan be adjusted by internal potential meter .or through output cable
    5.35~10.7A4.45~8.9A3.8~7.65A3.35~6.7A2.97~5.95A
    VOLTAGE TOLERANCE1.0%1.0%1.0%1.0%1.0%
    LINE REGULATION0.5%0.5%0.5%0.5%0.5%
    LOAD REGULATION0.5%0.5%0.5%0.5%0.5%
    SETUP RISE TIME2500ms, 80ms at full load 230VAC /115VAC
    HOLD UP TIME15ms at full load 230VAC / 115VAC
