IP67 rated. Cable for I/O connection.

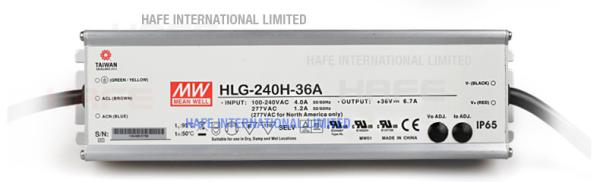

A:

IP65 rated. Output voltage and constant current level can be adjusted through built-in potentiometer.

B:

IP67 rated. Constant current level adjustable through output cable with 1~10Vdc or 10V PWM signal or resistance.

C:

Terminal block for I/O connection. Output voltage and constant current level can be adjusted through internal potentiometer

D:

IP67 rated. Timer dimming function, contact MEAN WELL for details.

MODEL

HLG-240H-36

HLG-240H-42

HLG-240H-48

HLG-240H-54

OUTPUT

DC VOLTAGE

36V

42V

48V

54V

CONSTANT CURRENT REGION

18 ~ 36V

21 ~ 42V

24 ~ 48V

27 ~ 54V

RATED CURRENT

6.7A

5.72A

5A

4.45A

RATED POWER

241.2W

240.24W

240W

240.3W

RIPPLE & NOISE

250mVp-p

250mVp-p

250mVp-p

350mVp-p

VOLTAGE ADJ. RANGE

Adjustable for A/C-Type only (via built-in potentiometer)

33.5 ~ 38.5V

39 ~ 45V

44.8 ~ 51.2V

50 ~ 57V

CURRENT ADJ. RANGE

Adjustable for A/C-Type only (via built-in potentiometer)

3.3 ~ 6.7A

2.86 ~ 5.72A

2.5 ~ 5A

2.23 ~ 4.45A

VOLTAGE TOLERANCE

±1.0%

±1.0%

±1.0%

±1.0%

LINE REGULATION

±0.5%

±0.5%

±0.5%

±0.5%

LOAD REGULATION

±0.5%

±0.5%

±0.5%

±0.5%

SETUP, RISE TIME

1000ms,80ms/115VAC 500ms,80ms/230VAC

HOLD UP TIME

15ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGE

90 ~ 305VAC 127 ~ 431VDC

FREQUENCY RANGE

47~63Hz

POWER FACTOR

PF≥0.98/115VAC, PF≥0.95/230VAC @ full load

TOTAL HARMONIC DISTORTION

THD< 20% (@ load≥50% / 115VAC,230VAC; @ load≥75% / 277VAC)

EFFICIENCY

92.5%

92.5%

93%

93.5%

AC CURRENT

4A / 115VAC 2A / 230VAC 1.2A / 277VAC

INRUSH CURRENT

COLD START 75A(twidth=570μs measured at 50% Ipeak) at 230VAC

MAX. No. of PSUs on 16A
CIRCUIT BREAKER

2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC

LEAKAGE CURRENT

<0.75mA / 277VAC

PROTECTION

OVER CURRENT

95 ~ 108%

Constant current limiting, recovers automatically after fault condition is removed

SHORT CIRCUIT

Hiccup mode, recovers automatically after fault condition is removed.

OVER VOLTAGE

43 ~ 49V

48 ~ 54V

55 ~ 63V

60 ~ 67V

Shut down and latch off o/p voltage, re-power on to recover

OVER TEMPERATURE

Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.

Tcase= -40 ~ +90°C

MAX. CASE TEMP.

Tcase= +90°C

WORKING HUMIDITY

20 ~ 95% RH non-condensing

STORAGE TEMP., HUMIDITY

-40~+80°C,10~95% RH

TEMP. COEFFICIENT

±0.03%/°C (0 ~ 50°C )

VIBRATION

10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY &EMC

SAFETY STANDARDS

U1012, CAN/CSA-C22.2 No. 107.1-01, U8750(type”HL”), CSA C22.2 No. 250.0-08; TUV EN61347-1, EN61347-2-13 independent; (except for HLG-240H C type); U60950-1, U8750, TUV EN60950-1; IP65 or IP67; J61347-1, J61347-2-13 approved

WITHSTAND VOLTAGE

I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH

EMC EMISSION

Compliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C(≥50% load) ; EN61000-3-3

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV)

OTHERS

MTBF

207.9Khrs min. MIL-HDBK-217F (25°C)

DIMENSION

244.2*68*38.8mm (L*W*H)(HLG-240H-Blank/A/B)
251*68*38.8mm (L*W*H)(HLG-240H-C)

PACKING

1.3Kg; 12pcs/16.6Kg/0.84CUFT(HLG-240-Blank/A/B)
1.23Kg; 12pcs/15.8Kg/1.16CUFT(HLG-240-C)
