    DC12 / 48V Electrical Lighting Accessories , Convertor Waterproof Electronic LED Driver

    Ask Lasest Price
    Brand Name : HAFE
    Model Number : DC12V 24V 36V 48V AC 85-265V 100-240V
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 3000 UNITS/month
    Delivery Time : 5-8working days
    • Product Details
    • Company Profile

    DC12 / 48V Electrical Lighting Accessories , Convertor Waterproof Electronic LED Driver

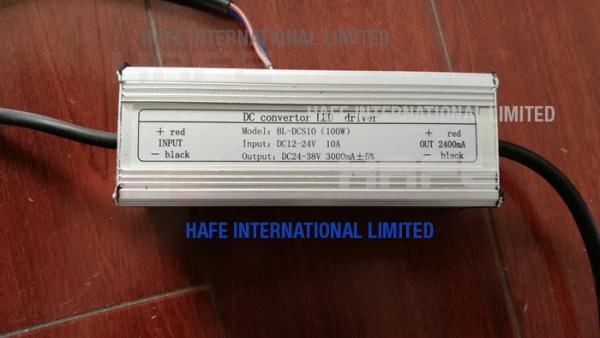

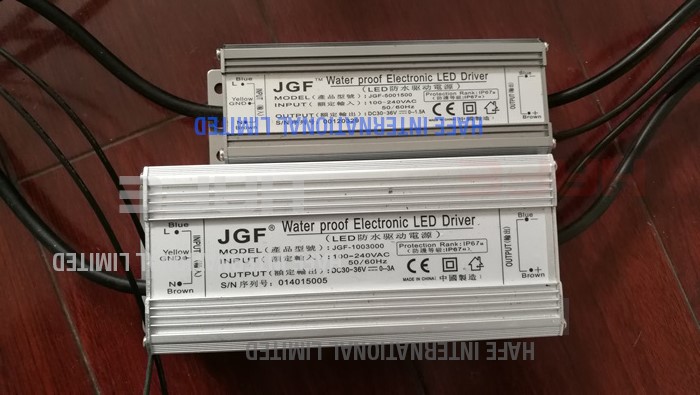

    DC12V 24V 36V 48V AC 85-265V 100-240V Convertor Waterproof Electronic LED Driver


    The advantage of Waterproof power supply 20W 30w 50w 100w constant voltage led driver for outdoor lighting:


    1. Constant voltage style power supply
    2. 170~264VAC AC input range
    3. Small volume,low weight,high efficiency
    4. Protections: short circuit/over load/over voltage/over temp
    5. Cooling by free air convection
    6. Fully encapsulated with IP67 level
    7. 100% full load burn-in test

    8. 1 Year warranty


    Basic paramters
    CE PFC RoHS IP67 SELV
    Inrush current (Max.)Cold start, 40A/230VAC
    ProtectionsOver Temperature : +85℃±10℃Shut down o/p voltage, re-power on to recover
    Over Voltage: 110% ~ 130%Shut down o/p voltage, re-power on to recover
    Over Load : 130%Shut down o/p voltage, re-power on to recover
    Short CircuitHiccup mode design, automatically recover after the problem is removed
    Power Factor CorrectionPFC>0.98 at 110VAC, PFC>0.95 at 230VAC
    Withstand VoltageI/P-O/P: 3KVAC, I/P-FG:1.5KVAC, OP-FG: 0.5KVAC
    Security StandardsEN-61347-1, EN-61347-2-13, design refer to UL8750
    EMCEN55015: 2013/A1:2015, EN61547:2009; EN61000-3-2: 2014; EN61000-3-3: 2013
    Working Temperature-25℃ ~ +50℃ (This series can work -50℃ normally
    Life Time+25~+30℃≥50000hrs
    Size (L*W*H)170*48*34mm

    Quality DC12 / 48V Electrical Lighting Accessories , Convertor Waterproof Electronic LED Driver for sale
