Meanwell 240W 36V Constant Voltage LED Power Supply HLG-240H-36 for
LED lighting
Dimensions: 244.2*68*38.8mm
Keywords: Meanwell (MW) LED Power Supply
Packaging Details: 12pcs per carton / CBM:0.8 / GW:14.8KG
Delivery Time : 3-14DAYS
Meanwell 240W 36V Constant Voltage LED Power Supply HLG-240H-36 for
LED lighting
Features of MeanWell (MW) Led Power Supply
- ConstantVoltage + Constant Current mode output
- Metal housing with class I design
- IP67 / IP65 rating for indoor or outdoor installations
- Function options : output adjustable via potentiometer;
3 in 1 dimming;Timer dimming
- Typical lifetime > 62000 hours
- 7 years warranty
Applications:
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
- LED greenhouse lighting
- Type “HL” for use in Class, Division 2 Ihazardous (Classified)
location.
QUICK VIEW

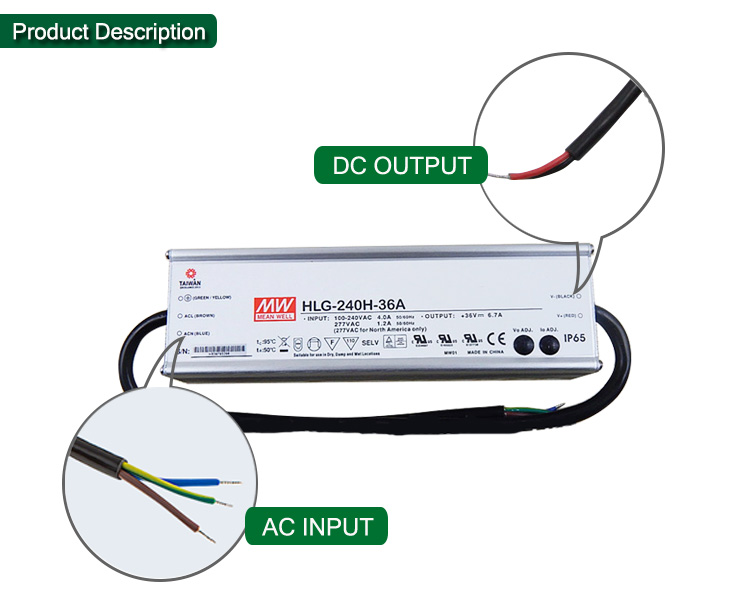

Product Name : Meanwell (MW) LED Power Supply HLG-240H-36
| MODEL | HLG-240H-12 | HLG-240H-15 | HLG-240H-20 | HLG-240H-24 | HLG-240H-30 | HLG-240H-36 | HLG-240H-42 | HLG-240H-48 | HLG-240H-54 |
| OUTPUT | DC VOLTAGE | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V |
| RATED CURRENT | 16A | 15A | 12A | 10A | 8A | 6.7A | 5.72A | 5A | 4.45A |
| RATED POWER | 192W | 225W | 240W | 240W | 240W | 241.2W | 240.24W | 240W | 240.3W |
| INPUT | VOLTAGE RANGE | 90-305VAC 127-431VDC |
| FREQUENCY RANGE | 47-63Hz |
| EFFICIENCY(Typ.) | 90% | 90% | 91.50% | 92.50% | 92.50% | 92.50% | 92.50% | 93% | 93.50% |
| AC CURRENT | 4A /115VAC 2A/230VAC 1.2A/277VAC |
HLG-240H series is a 240W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-240H operates
from 90~305VAC and offers models with different rated voltage
rangingbetween 12V and 54V. Thanks to the high efficiency up to
93.5%, with the fanless design, the entire series is able to
operate for -40°C ~ +90°Ccase temperature under free air
convection. The design of metal housing andIP67/IP65 ingress
protection level allows this series to fit both indoor and outdoorapplications. HLG-240H is equipped with various function options,
such asdimming methodologies, so as to provide the optimal design
flexibility for LED lighting system.
Q1. Can I have a sample order for Meanwell (MW) LED Power Supply
HLG-240H-36?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A:Sample needs 5-7 days, mass production time needs 2-3 weeks. The
actual time is up to the quantity.
Q3. Do you have any MOQ limit for Meanwell (MW) LED Power Supply
HLG-240H-36 order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Meanwell (MW) LED Power Supply
HLG-240H-36?
A: Firstly let us know your requirements or application.Secondly We
quote according to your requirements or our suggestions.Thirdly
customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to use my own package?
A: Yes.Normally we offer the white box without any printing.If you
have the deisgn of box,we can help you produce in China and pack
it.
